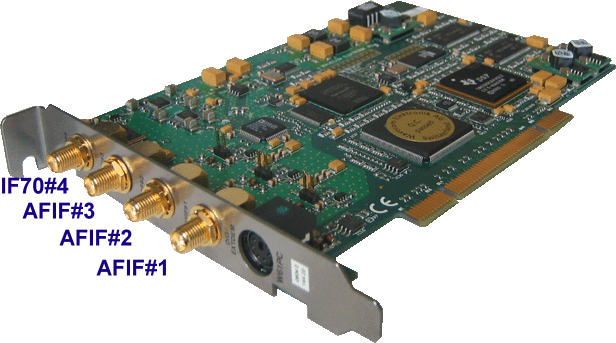

The W61PC card has four SMA signal inputs and a Mini-DIN connector:
|
Input / Output |
Frequency Range Function |
Input Voltage Range |
|
AFIF#1- 3 |
50 Hz-25 MHz AF or IF Input |
2.0 mVrms – 0.5 Vrms 20 mVrms – 2.5 Vrms (with attenuator jumper) Input impedance: 10 kOhm |
|
IF70#4 |
52.5 MHz-87.5 MHz IF input for SAT monitoring |
50 mVrms - 5 Vrms Input impedance: 50 Ohm |
|
EXT-DEM |
Max. 12 kbps External Demodulator Input |
[0 V, +5 V] to [-12 V, +12 V] |
|
DIG |
Max. 36 Mbps, Direct Input for DSP receivers (not yet supported) |
-0.5 to +6.5 V |
One or more of these inputs must be connected to the signal source(s) using a coaxial cable or a similar shielded cable. As an example a HF receiver may be connected to an AFIF connector and a satellite receiver to the IF70#4 connector.
To avoid distortion of the input signal the input voltage ranges listed above should be observed.
20 dB attenuation jumpers are located on the PCB close to the corresponding input connectors.
Below is an example configuration for a W61PC card setup:
The external FSK demodulator hardware is optional - it is only required if the customer wishes to use his own demodulator hardware.
Mini-DIN Connector (EXT-DEM-IN/DIG)
W61PC Power Supply Ratings
The power supply ratings for a W61PC card are:
Ø 1.0A@+3.3V
Ø 0.4A@+12V
